Confidential Computing and the Public Cloud

Eyal Estrin
Cloud Computing
November 10, 2020

Introduction to data encryption

To protect data stored in the cloud, we usually use one of the following methods:

·        Encryption at transit – Data transferred over the public Internet can be encrypted using the TLS protocol. This method prohibits unwanted participants from entering the conversation.

·        Encryption at rest – Data stored at rest, such as databases, object storage, etc., can be encrypted using symmetric encryption which means using the same encryption key to encrypt and decrypt the data. This commonly uses the AES256 algorithm.



When we wish to access encrypted data, we need to decrypt the data in the computer’s memory to access, read and update the data.

This is where confidential computing comes in – trying to protect the gap between data at rest and data at transit.

Confidential Computing uses hardware to isolate data. Data is encrypted in use by running it in a trusted execution environment (TEE).



As of November 2020, confidential computing is supported by Intel Software Guard Extensions (SGX) and AMD Secure Encrypted Virtualization (SEV), based on AMD EPYC processors.

Comparison of the available options






Reference Architecture

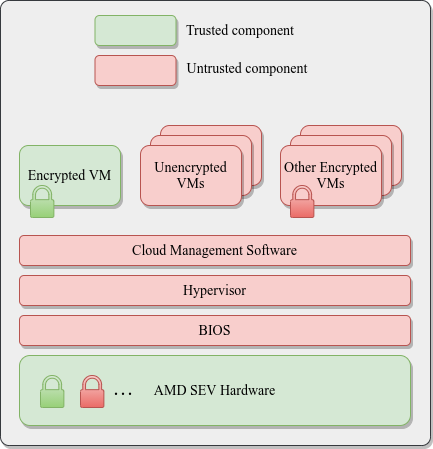

AMD SEV Architecture:

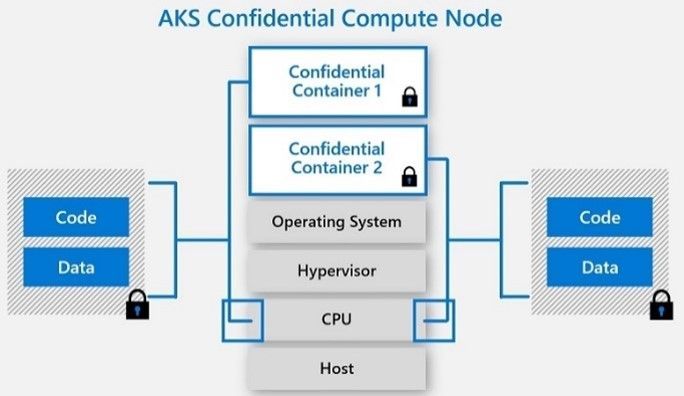

Azure Kubernetes Service (AKS) Confidential Computing:

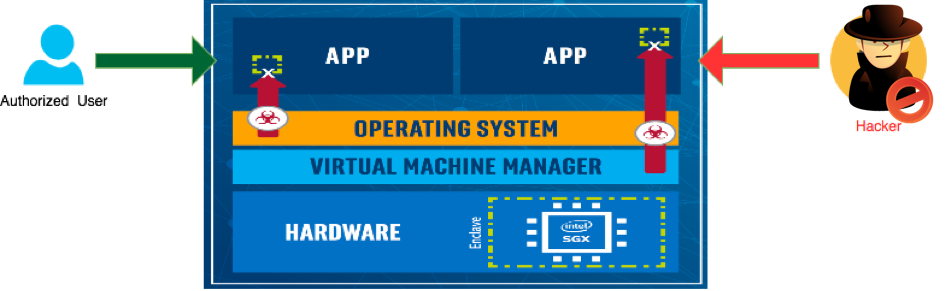

Data-in-use protection on IBM Cloud using Intel SGX:

References

·        Confidential Computing: Hardware-Based Trusted Execution for Applications and Data

https://confidentialcomputing.io/wp-content/uploads/sites/85/2020/10/ConfidentialComputing_Outreach_Whitepaper-8-5x11-1.pdf

·        Google Cloud Confidential VMs vs Azure Confidential Computing

https://msandbu.org/google-cloud-confidential-vms-vs-azure-confidential-computing/

·        A Comparison Study of Intel SGX and AMD Memory Encryption Technology

https://caslab.csl.yale.edu/workshops/hasp2018/HASP18_a9-mofrad_slides.pdf

·        SGX-hardware listhttps://github.com/ayeks/SGX-hardware

·        Performance Analysis of Scientific Computing Workloads on Trusted Execution Environments

https://arxiv.org/pdf/2010.13216.pdf

·        Helping Secure the Cloud with AMD EPYC Secure Encrypted Virtualization

https://developer.amd.com/wp-content/resources/HelpingSecuretheCloudwithAMDEPYCSEV.pdf

·        Azure confidential computing

https://azure.microsoft.com/en-us/solutions/confidential-compute/

·        Azure and Intel commit to delivering next generation confidential computing

https://azure.microsoft.com/en-us/blog/azure-and-intel-commit-to-delivering-next-generation-confidential-computing/

·        DCsv2-series VM now generally available from Azure confidential computing

https://azure.microsoft.com/en-us/blog/dcsv2series-vm-now-generally-available-from-azure-confidential-computing/

·        Confidential computing nodes on Azure Kubernetes Service (public preview)

https://docs.microsoft.com/en-us/azure/confidential-computing/confidential-nodes-aks-overview

·        Expanding Google Cloud’s Confidential Computing portfolio

https://cloud.google.com/blog/products/identity-security/expanding-google-clouds-confidential-computing-portfolio

·        A deeper dive into Confidential GKE Nodes—now available in preview

https://cloud.google.com/blog/products/identity-security/confidential-gke-nodes-now-available

·        Using HashiCorp Vault with Google Confidential Computing

https://www.hashicorp.com/blog/using-hashicorp-vault-with-google-confidential-computing

·        Confidential Computing is cool!

https://medium.com/google-cloud/confidential-computing-is-cool-1d715cf47683

·        Data-in-use protection on IBM Cloud using Intel SGX

https://www.ibm.com/cloud/blog/data-use-protection-ibm-cloud-using-intel-sgx

·        Why IBM believes Confidential Computing is the future of cloud security

https://venturebeat.com/2020/10/16/why-ibm-believes-confidential-computing-is-the-future-of-cloud-security/

·        Alibaba Cloud Released Industry's First Trusted and Virtualized Instance with Support for SGX 2.0 and TPM

https://www.alibabacloud.com/blog/alibaba-cloud-released-industrys-first-trusted-and-virtualized-instance-with-support-for-sgx-2-0-and-tpm_596821
